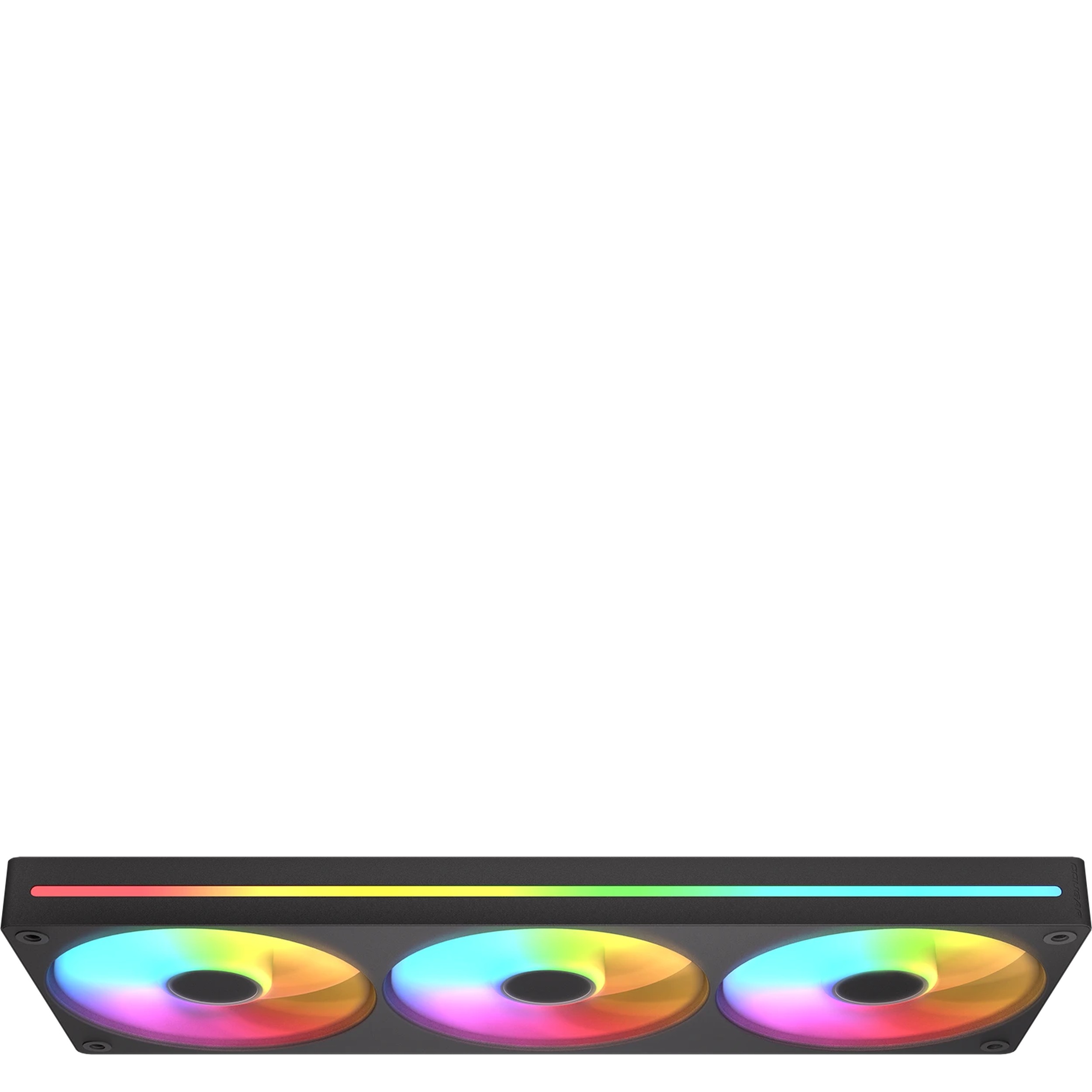

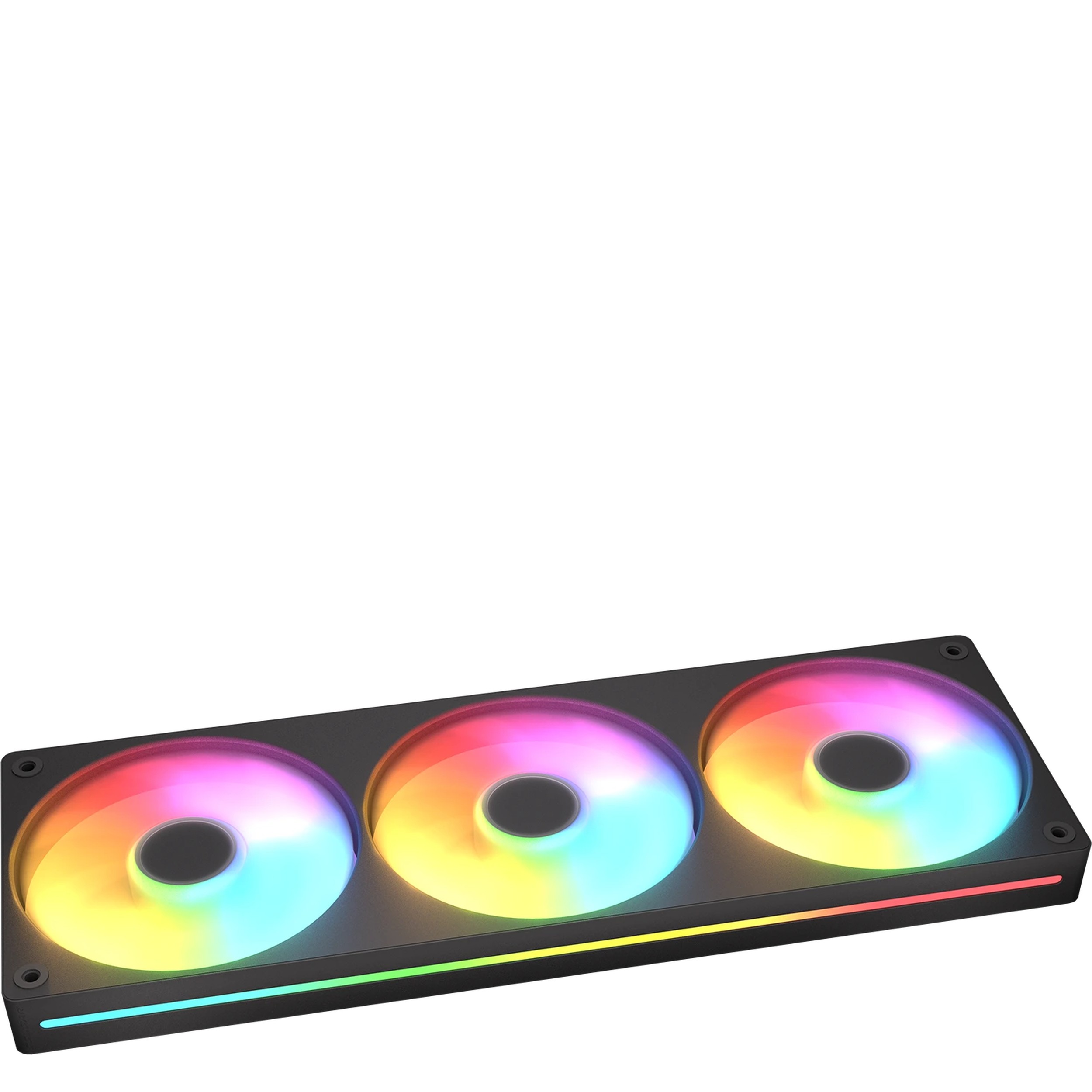

Cougar Unity 360 RB ARGB | Triple 120mm Reverse-Blade Fan Set | Black

QUICK SPECS

• Fluid Dynamic Bearing - quiet running and a long service life
• PWM control - 700-1600 RPM dynamic range
• Airflow - 49.01 CFM at 2.31 mmH2O static pressure
• Acoustics - 33.5 dB(A) at full speed
• Single-frame design - 3 x 120 mm fans, integrated cabling, addressable ARGB

One module instead of 3 separate fans

The Cougar Unity360-RB ARGB mounts 3 120 mm reverse-blade fans on a single 360 mm frame with integrated cabling, so you wire up one module rather than 3 individual fans. It drops straight onto a 360 mm radiator or into a case with matching 360 mm mounting.

Reverse blades for clean, front-facing lighting

The reverse-blade layout puts the lit face of the fan towards the viewer, so the ARGB reads cleanly when the module is mounted with the blades facing out. Airflow is 49.01 CFM at 2.31 mmH2O across a 700-1600 RPM PWM range - lower than the standard-blade version, which is the trade-off for the reversed geometry.

Addressable ARGB across the whole frame

Lighting runs the full width of the frame and syncs over a standard 5 V 3-pin ARGB header, so it picks up whatever effects your motherboard software is already running.

Quiet at 33.5 dB(A)

A Fluid Dynamic Bearing keeps the module at 33.5 dB(A) even at the top of its range, and 4-pin PWM control means it only spins as fast as your thermals call for.

FEATURES

• 3 x 120 mm reverse-blade fans on a single 360 mm frame
• 49.01 CFM airflow, 2.31 mmH2O static pressure
• Fluid Dynamic Bearing (FDB) for quiet, long-life operation
• 33.5 dB(A) maximum noise
• 4-pin PWM speed control, 700-1600 RPM (+/-10%)
• Fully addressable 5 V 3-pin ARGB lighting
• Integrated single-frame cabling - one PWM and one ARGB connection

SPECIFICATIONS

• Product colour: Black
• Model number: CF-UN360RB-RGB
• EAN: 4710483779572
• Fan size: 120 mm x 3 (single frame)
• Frame dimensions: 363.3 x 125 x 25 mm
• Bearing type: FDB (Fluid Dynamic Bearing)
• Fan speed: 700-1600 RPM (+/-10%)
• Air flow: 49.01 CFM
• Air pressure: 2.31 mmH2O
• Acoustic noise: 33.5 dB(A)
• Rated voltage: 12 VDC (fan) / 5 VDC (LED)
• Rated current: 0.85 A (fan) / 1.6 A (LED)
• Power consumption: 10.2 W (fan) / 8 W (LED)
• Connectors: 4-pin PWM, 3-pin 5 V ARGB
• Cable length: 520 mm (fan) / 600 mm (ARGB)
• Weight: 0.39 kg
• Recommended use: 360 mm radiators and 360 mm case mounts

WHAT IS IN THE BOX

• 1 x Cougar Unity360-RB ARGB single-frame fan module (3 x 120 mm)
• 1 x Mounting screw set
• 1 x Integrated PWM and ARGB cable set
• 1 x User manual
