GIGABYTE AMD A620 Chipset for AMD AM5; 2x Dual DDR5; 1x M2; HDMI; DP; mATX.
GIGABYTE AMD A620 Chipset for AMD AM5; 2x Dual DDR5; 1x M2; HDMI; DP; mATX. from GIGABYTE. Part of our MOTHERBOARD range.
The Gigabyte A620M H is a compact powerhouse designed for modern AMD Ryzen builds that demand speed, stability, and future-ready performance. Built on the AM5 platform, this Micro-ATX motherboard supports the latest Ryzen 7000 and 8000 series CPUs while unlocking ultra-fast DDR5 memory and PCIe 4.0 storage for lightning-quick responsiveness.
A robust 5+2+2 digital VRM design ensures clean and stable power delivery, helping your system run cooler and more reliably under load - perfect for gaming rigs, productivity builds, and everyday performance PCs. With high-speed connectivity, versatile expansion, and modern display support, this board delivers premium features without unnecessary complexity.
Whether you're building a new system or upgrading to DDR5 and AM5, the A620M H provides a strong foundation that balances performance, reliability, and value.
FEATURES
• Supports AMD Ryzen 7000 & 8000 Series processors (Socket AM5)
• 5+2+2 phase digital VRM for stable power delivery
• DDR5 memory support up to 7200MHz (OC)
• PCIe 4.0 M.2 slot for high-speed NVMe SSDs
• Dual-channel DDR5 architecture up to 96GB
• Gigabit LAN for reliable wired networking
• HDMI 2.1 + DisplayPort 1.4 4K display support
• Micro-ATX form factor for compact builds
• 7.1 channel HD audio
• Advanced PC health monitoring (fan, temperature, voltage)
SPECIFICATIONS
Processor & Chipset
• Chipset: AMD A620
• Socket: AM5
• CPU Support: AMD Ryzen 7000 Series
• Form Factor: Micro-ATX
Memory
• Memory Type: DDR5 DIMM
• Slots: 2
• Max Capacity: 96GB
• Max Speed: 7200MHz (OC)
• Dual-channel architecture
• Non-ECC unbuffered memory
Storage
• 1 × PCIe 4.0 M.2 slot
• 4 × SATA III ports
• RAID support: 0 / 1 / 10
• Supports HDD & SSD
Expansion
• 1 × PCIe x16
• 1 × PCIe x1
Graphics Output
• HDMI 2.1
• DisplayPort 1.4
• Max resolution: 4096 × 2160
Networking
• Gigabit Ethernet LAN
• No onboard Wi-Fi

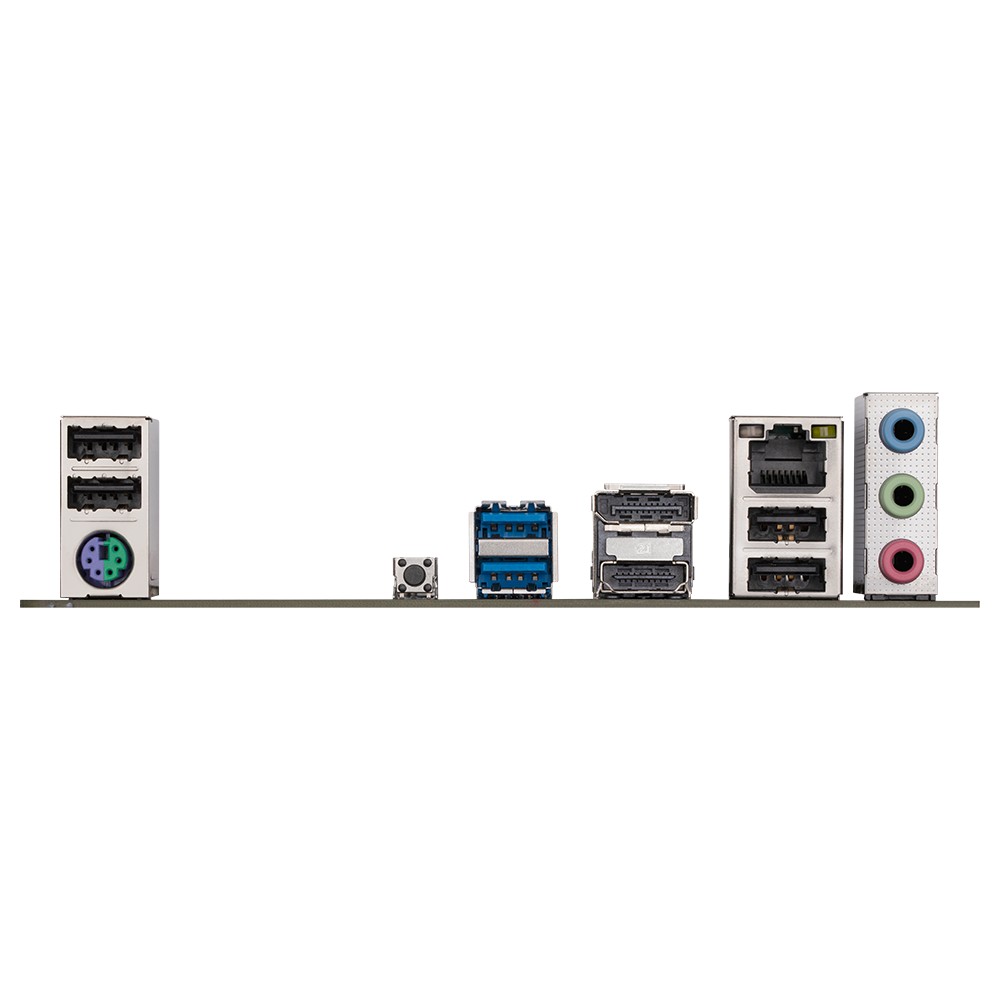

Rear I/O
• 4 × USB 2.0
• 2 × USB 3.2 Gen 1 Type-A
• 1 × RJ-45 LAN
• PS/2 combo port
• 3 × audio jacks
• Microphone input
Internal Connectivity
• USB 2.0 headers
• USB 3.2 Gen 1 header
• 4 × SATA connectors
• TPM header
• RGB LED header
• CPU & system fan headers
Audio
• 7.1 channel HD audio
Operating System Support
• Windows 10 x64
• Windows 11 x64
Dimensions
• 230 × 225 × 35 mm
What's in the box 1 x Gigabyte A620M H AMD A620 Ryzen Socket AM5
