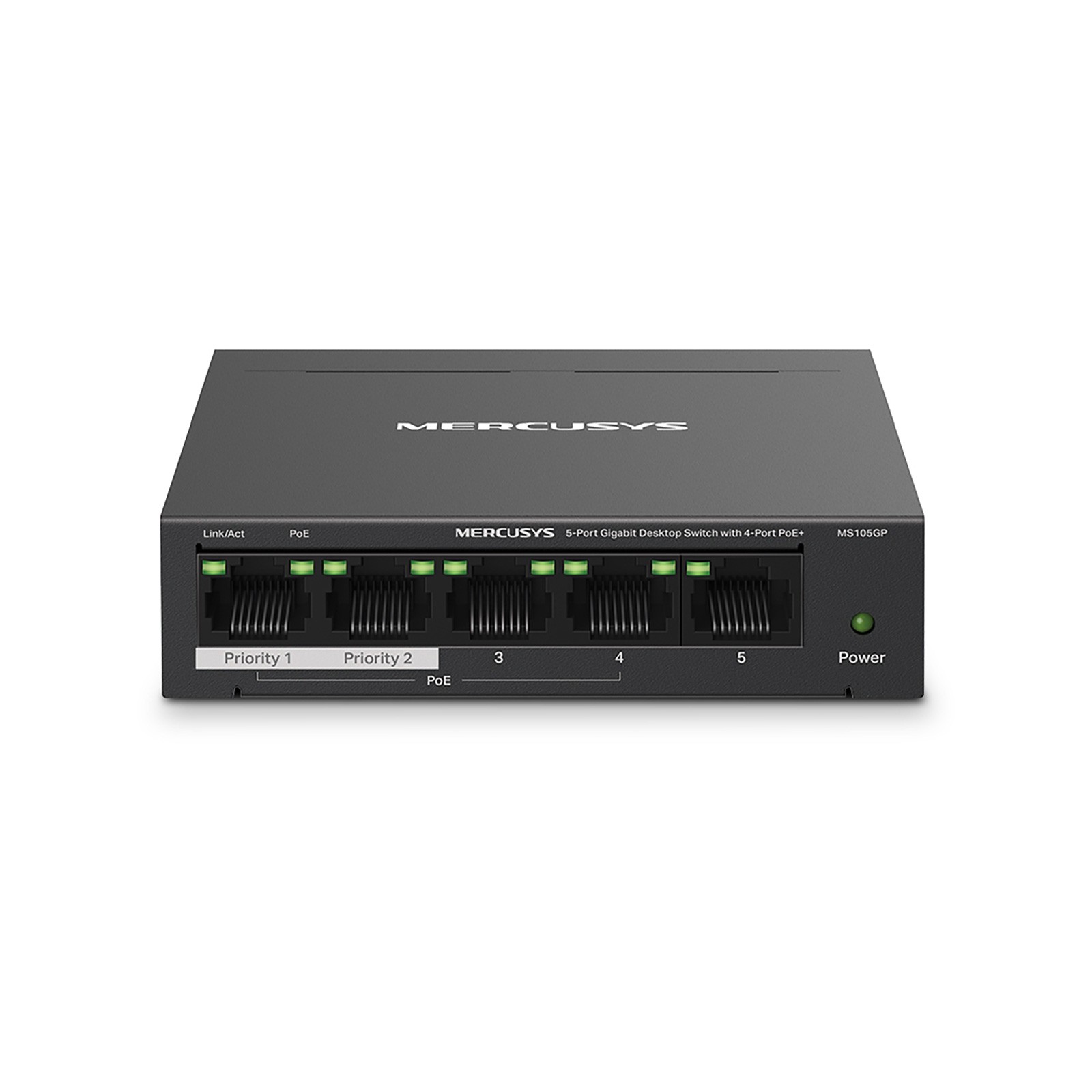

Mercusys 5 Port Gigabit Unmanaged Desktop POE Switch

Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports Two Cables in One: With four PoE+ ports, transfers data and power on one single cable High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE portsx Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Modex Isolation Mode: One click to divide traffic for specific ports for stability and security Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs Durable Metal Casing: Allows for efficient heat dissipation and long network life Plug and Play: Simple to use and saves time and effort
4 PoE+ Ports (65 W Budget) for Network Deployment: All five ports of the MS105GP are gigabit ports, with four PoE+ ports (1-4). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budgetx for the 4× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
• Long-Range up to 250 m with Extend Mode: Extend Mode increases PoE transmission distance to 250 m. MS105GP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
• Traffic Separation: With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection.
• Port Prioritization: Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
• Plug and Play: MS105GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
• Durable and Silent: MS105GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.

PoE Ports: RJ45Standard: Compliant with 802.3 af/at Powered Devices PoE Ports: Port 1- Port 4 PoE Power Budget: 65 W
Interfaces: 5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Supply: External Power Adapter (Output: 53.5V/1.31A)
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates: 10/100/1000 Mbps at Half Duplex 20/200/2000 Mbps at Full Duplex
Mac Address Table: 2K
Max Power Consumption: 3.13W 220 V / 50 Hz, no PD connected) 75.15W 220 V / 50 Hz, with 65W PD connected)
What's in the box 5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP) Power Adapter Quick Installation Guide
