Asus TUF Gaming B650M-E WIFI Motherboard - AMD Ryzen
– Micro-ATX Form Factor – AMD B650 Chipset – Socket AM5 – Supports Ryzen 7000-Series Processors – ASUS BIOS Flashback Supports Future Processors – Supports USB 5Gb/s Type-C Front-Panel Header – 4x DDR5 DIMM Slots, Supports Up to 128GB – Supports up to DDR5-6400 (OC) – Supports AMD EXPO Memory – 1x PCIe 4.0 x16 Slot – 2x PCIe 4.0 x1 Slots – 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot – 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot – 4x SATA 3.0 Ports – 1x USB 10Gb/s Type-C Port – 1x USB 10Gb/s Type-A Port – 2x USB 5Gb/s Type-A Ports – 4x USB 2.0 Type-A Ports – 1x HDMI 2.1 TMDS, 1x DisplayPort 1.4 – 1x PS/2 Combo Port, 2x SMA Connectors – 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone) – Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port – WiFi 6 2×2 MIMO Dual-Band Adapter, Bluetooth 5.2 – Realtek High-Definition Surround Audio Codec – 8+2 Stage Digi+ VRM Solution – ASUS AURA Sync RGB Software – ASUS Fan Xpert 2+ Technology – ASUS Armoury Crate Utility – Supports Windows 10, Windows 11 64-bit – 3 Year Warranty

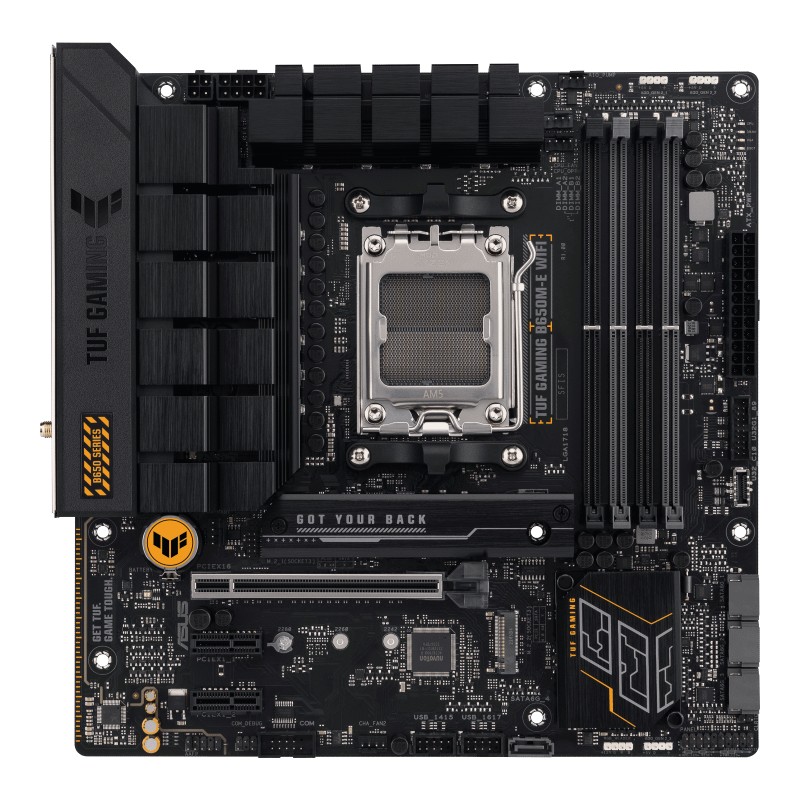

ASUS TUF GAMING B650M-E WIFI – AMD B650 AM5 micro-ATX Motherboard
A durable AM5 platform for compact gaming builds, the TUF GAMING B650M-E WIFI brings DDR5 support up to 192 GB with EXPO, PCIe-Gen5 storage on the CPU-linked M.2 slot (with Ryzen 9000/7000), PCIe 4.0 x16 for your GPU, Realtek 2.5 Gb Ethernet, and integrated Wi-Fi 6—plus TUF-grade protections and DIY-friendly touches like M.2 Q-Latch and BIOS FlashBack™.
Key Features
- AM5 & DDR5: Supports Ryzen™ 9000/8000/7000 CPUs and up to 192 GB DDR5 with AMD EXPO™ tuning.
- Next-gen NVMe: CPU M.2_1 runs PCIe 5.0 ×4 on Ryzen 9000/7000; second M.2 is PCIe 4.0 ×4.
- PCIe 4.0 x16 graphics: SafeSlot Core+ reinforced primary slot for discrete GPUs.
- Networking: Realtek 2.5 GbE with TUF LANGuard + onboard Wi-Fi 6 (1×1) and Bluetooth 5.2.
- Display outputs for APUs: 2× DisplayPort (up to 8K60) + HDMI 2.1 (4K60).
- Plenty of USB: Rear: 2× USB 3.2 Gen 2 (Type-A + Type-C), 2× USB 3.2 Gen 1, 4× USB 2.0; Front: USB-C Gen 1 header + additional Gen 1/USB 2.0 headers.
- TUF protections & DIY: DIGI+ VRM, ESD guards, Stainless-steel I/O, SafeSlot/SafeDIMM, Q-LED, M.2 Q-Latch, pre-mounted I/O shield, and BIOS FlashBack™.
| Specification | Detail |
|---|---|
| CPU Support | AMD AM5: Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD B650 |
| Memory | 4× DDR5 DIMM, dual-channel, up to 192 GB; up to DDR5-7600+(OC); AMD EXPO™; OptiMem II |
| Expansion Slots | 1× PCIe 4.0 ×16 (CPU) · 2× PCIe 4.0 ×1 (chipset) |
| Storage | 2× M.2 (M.2_1 up to PCIe 5.0 ×4 with Ryzen 9000/7000; M.2_2 PCIe 4.0 ×4) · 4× SATA 6 Gb/s; RAID 0/1/10 |
| Networking | Realtek 2.5 GbE (LANGuard) + Wi-Fi 6 (1×1) & Bluetooth 5.2 |

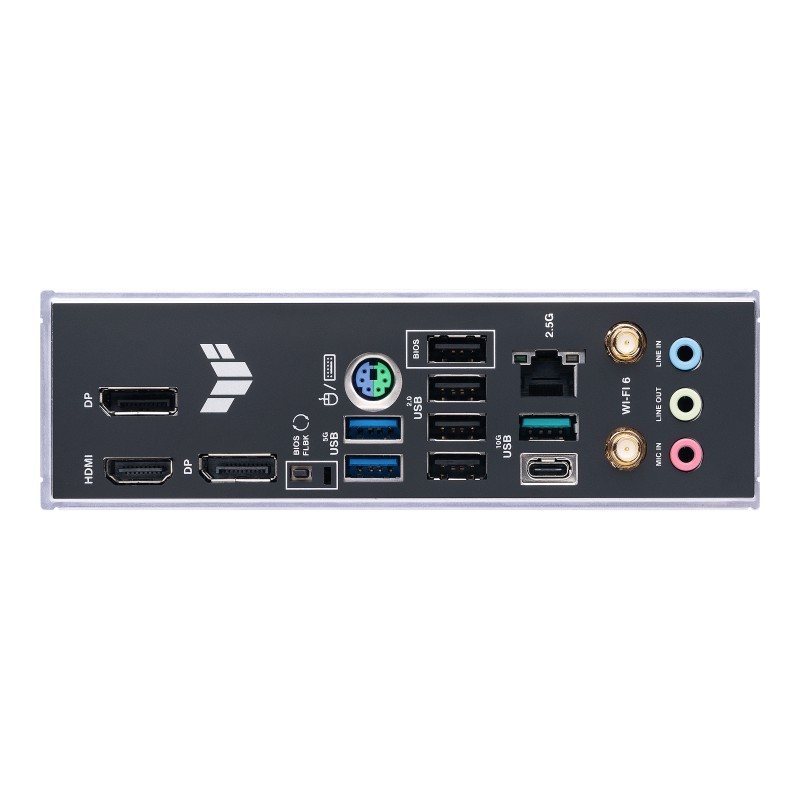

| Rear I/O | USB-C 3.2 Gen 2, USB-A 3.2 Gen 2, 2× USB-A 3.2 Gen 1, 4× USB 2.0, 2× DP, 1× HDMI, 2.5 GbE, Wi-Fi, 3× audio jacks, BIOS FlashBack™, PS/2 |
| Internal I/O | USB-C 3.2 Gen 1 header, 1× Gen 1 header (adds 2 ports), 2× USB 2.0 headers (adds 4 ports), 3× ARGB Gen 2, 1× RGB, AIO_PUMP, CPU/CPU-OPT/2× CHA_FAN |
| Audio | Realtek 7.1-ch HD codec with shielding & premium capacitors; DTS audio processing |
| Form Factor | micro-ATX (24.4 × 24.4 cm) |
| OS Support | Windows 11 / Windows 10 64-bit |
Why You’ll Love It
If you’re building a compact, reliable AM5 gaming rig, the B650M-E WIFI nails the essentials: Gen5 NVMe for ultra-fast scratch drives, rock-solid PCIe 4.0 graphics, wired & wireless networking, and the signature TUF durability and build-friendly features that make assembly and updates painless.
